PROJECT: RestOrRant

Overview

RestOrRant is a command line interface (CLI) restaurant management application that my team and I designed for the CS2103T Software Engineering module in NUS School of Computing. For our module project, we morphed RestOrRant from an address book application into one that allows restaurant managers and waiters to perform front-end operations efficiently. This includes allocating tables to customers, handling orders, tracking item availability and calculating bills. Managers can also view revenue and order statistics to determine how the restaurant is faring.

We split the application into four main features: Tables, Orders, Menu and Statistics. Each team member was in charge of one feature and mine was the Orders feature. I also conceptualised and implemented the Mode system alongside my team members.

I will be sharing more about the Orders feature and Mode system in the following sections, as well as extracting the relevant parts of the User Guide and Developer Guide that I wrote for these features.

You may refer to the table below for the symbols and formatting used in this portfolio.

code

A grey highlight with monospaced font indicates a command that can be typed into the command box of the application.

name

A blue highlight with monospaced font indicates a reference to the codebase. This could be a component, class, method, attribute or file name.

A green tick indicates the expected result that you should see after executing a command in the application.

A lightbulb indicates tips and tricks that might be useful to the user.

A blue information symbol indicates additional information for that section that is good to know.

A red exclamation mark symbol indicates important pointers to take note.

Summary of contributions

In this section, I will provide a summary of the contributions that I have made to the team project. These contributions include the features that I implemented, as well as other project-related contributions.

  • Major enhancement added (Orders feature): I added the Orders feature and all of its related commands.

    • What it does: It allows restaurant front-end staff to take orders from customers using the addToOrder command, as well as remove incorrectly inputted orders using the deleteFromOrder or clearOrder commands. They can track the current list of items ordered for each table (in Table Mode) or across all tables (in Restaurant Mode) and update their serving statuses with the serve command.

    • Justification: Restaurant front-end staff will need this core feature as keeping track of orders is one of the crucial front-end operations that restaurants have to manage. This feature allow orders to be handled more efficiently so that customers can be promptly attended to and served.

    • Highlights: I had to implement new classes across the four components in the architecture to support the Orders feature, allowing me to better understand the project’s architecture. I also learnt to write unit and integration tests for automated testing of the Orders feature.

  • Other enhancement added (Mode system): I conceptualised the Mode system and added features related to the changing of modes.

    • What it does: RestOrRant has four modes for each of the four features. Users can switch between modes to use the other features by using commands, such as the restaurantMode and tableMode commands that I implemented.

    • Justification: Translating our main features into different application modes provides a functional and visual distinction between the features and makes RestOrRant more organised and clear for its users. The Mode system also allows us to provide users with only the relevant displays for each feature instead of overwhelming users with all the information at one shot.

    • Highlights: I had to work closely with my other team members as we all worked on implementing different parts of this feature together. The Mode system affects the other commands as they now need to consider the current mode. The Mode system is also designed to be easily extendable to support more modes in the future.

  • Code contributed: [Project Code Dashboard]

  • Other contributions:

    • Project management:

      • Charted the direction and progress of the project and facilitated weekly project meetings as the team lead

      • Set up the issues tracker on GitHub for our project

      • Managed the integration of code by merging Pull Requests and ensuring compatibility

    • Enhancements to existing features:

      • Updated the GUI colour scheme and implemented the ability to switch between colour schemes for the different modes [PR #128]

    • Documentation:

      • Updated the README page [PR #150]

      • Updated the User Guide

        • Revamped the User Guide in terms of structure and cosmetics, as well as rewrote the Introduction and Quick Start sections [PR #192]

        • Reorganised Command Summary into table form for ease of reference [PR #156]

        • Split commands into their respective modes for a clearer presentation [PR #124]

      • Updated the Developer Guide

        • Revamped the Developer Guide in terms of structure and cosmetics [PR #194]

        • Rewrote the Introduction section [PR #150]

    • Community:

      • PRs reviewed (with non-trivial review comments) [PRs #151, #186, #190]

      • Reported bugs for other teams in the class [Examples: 1, 2, 3, 4, 5]

    • Tools:

      • Set up GitHub, Travis, AppVeyor and Coveralls for our project

      • Set up auto-publishing of docs

Contributions to the User Guide

This section shows the additions that I have made to the User Guide to provide information about how the Mode system and Orders features work.

I wrote descriptions for the Mode system and the four commands to change between the modes. My description of the tableMode command is replicated below while my full write-ups can be found here.

Switching to Table Mode : tableMode

You can use this command to switch over to Table Mode for the specified table number to handle the orders of that table.

Format: tableMode TABLE_NUMBER
Shortcut: TM

You can only access Table Mode for tables that exist in the restaurant and are currently occupied. The tables can be updated in Restaurant Mode.
You can use this command in Table Mode if you are switching to a different table number.

The user interface switches to Table Mode. The specified table number is also indicated in the Results Display and the Mode Display.

For example, after executing tableMode 5, the Results Display shows the table number of the current table, as seen in the image below.

TableMode RD

The table number will also be displayed in the Mode Display until you change the mode, as shown below.

TableMode CM

I also wrote the Table Mode section and the descriptions for the five Orders feature commands (including one command for v2.0). My introduction for the Table Mode section and descriptions of the addToOrder and serve commands are replicated below while my full write-ups can be found here.

Table Mode

In Table Mode, you can handle orders from the current table, which is given by the table number that was specified in the tableMode command. You can take orders, track the serving status of the items ordered, and calculate the bill for that table in this mode.

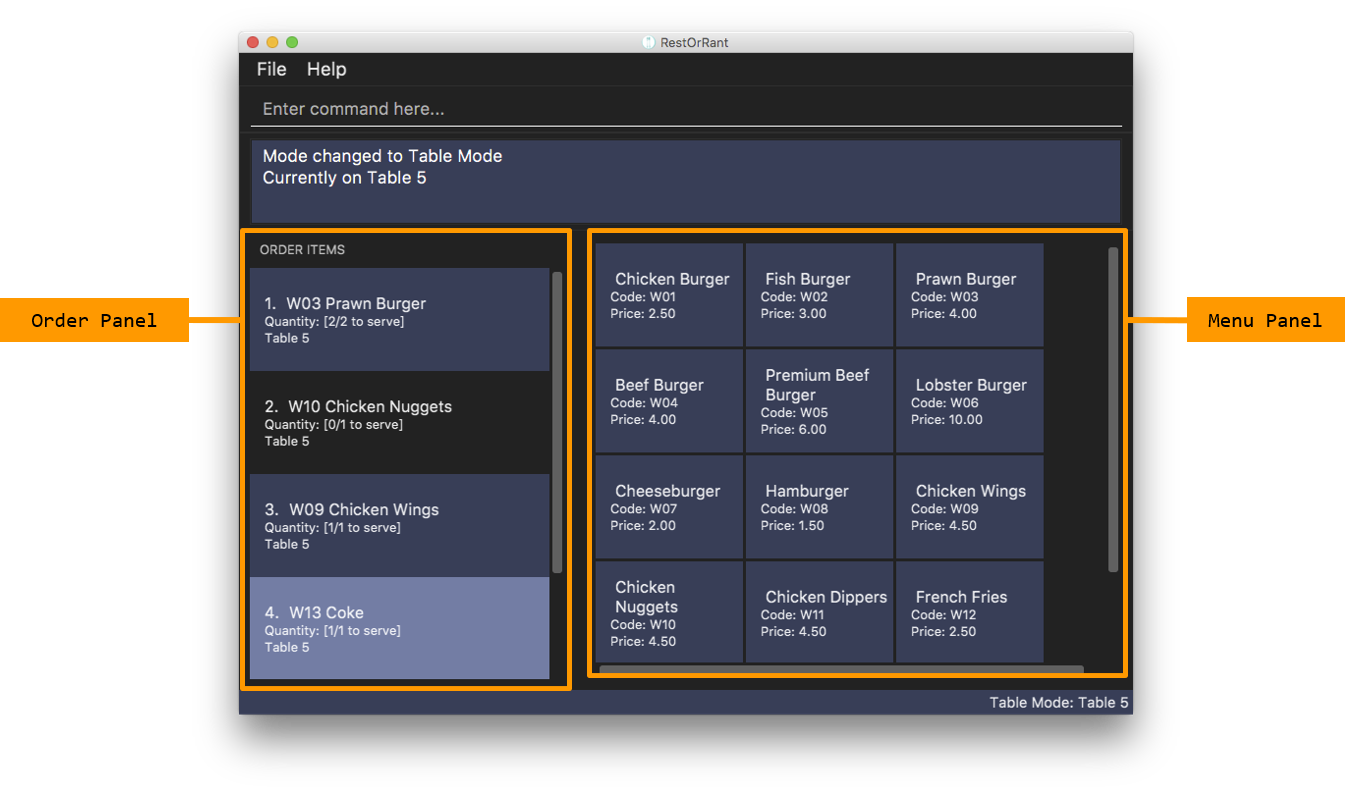

The user interface for Table Mode (in this example, for Table 5) is shown in the image below.

TMUi

The function of the side and main panels are as follows:

  • Order Panel: This panel shows you the list of items ordered by the current table, arranged in chronological order. It also indicates the quantity left to serve for each item, and the background turns dark when the item is fully served.

  • Menu Panel: This panel displays the items on the menu along with their item codes for you to conveniently refer to when taking orders.

Here are the commands that you can use in this mode to efficiently handle the orders in your restaurant.

Adding items to an order : addToOrder

As you are taking an order from customers, this command allows you to record down the items that were ordered by the table by specifying the item code and quantity for each item that was ordered. You may also add an item that was previously ordered by the table to increase its quantity if customers choose to order more.

The maximum quantity of an item that can be ordered by a table is 2,000,000.
The item codes for each item on the menu can be easily found in the Menu Panel.

Format: addToOrder ITEM_CODE QUANTITY [ITEM_CODE QUANTITY]…
Shortcut: add

You can only add item codes that exist in the menu. You may add items to the menu using the addToMenu command in Menu Mode.
You can add multiple or duplicate order items in a single command!
If any of the item codes do not exist in the menu or if the new quantity exceeds 2,000,000, then that item and subsequent items will not be added to the order.

You will see a success message in the Results Display and the updated order items will be displayed in the Order Panel.

For example, Table 5 initially has 4 items in the Order Panel as shown below. Note that the quantity of Coke ordered is 1.

AddToOrder Before

Suppose the customers at Table 5 want to order 1 more Cheeseburger and 1 more Coke. After executing addToOrder W07 1 W13 1, you will see a success message in the Results Display, as shown below.

AddToOrder RD

The Order Panel will also be updated and you will now see 5 items displayed. As seen in the image below, 1 portion of Cheeseburger has been added as the 5th item, while the quantity of Coke ordered has been updated from 1 to 2.

AddToOrder After

Marking an item in an order as served : serve

Once you have served items to the table, you can update the serving status of those items by using this command so that you can easily keep track of what has and has not been served.

Format: serve ITEM_CODE [QUANTITY]
Shortcut: s

You can only serve item codes and quantities that have not already been served for the table. You can add items to the order using the addToOrder command.
If the quantity is not specified, the default quantity served is 1.

You will see a success message in the Results Display and the order item’s quantity to serve will be updated in the Order Panel. The background of the order item also turns dark once it is fully served.

For example, Table 5 initially has 4 items in the Order Panel as shown below. Note that there are still 2 Prawn Burgers that have yet to be served.

Serve Before

Suppose the Prawn Burgers have been served and you want to update their serving status in RestOrRant. After executing serve W03 2, you will see a success message in the Results Display, as shown below.

Serve RD

The Order Panel will also be updated and you can see from the image below that there are no more quantities of Prawn Burger to serve. Since it is fully served, the background of the Prawn Burger item has turned dark.

Serve After

Contributions to the Developer Guide

This section shows the additions that I have made to the Developer Guide to show the implementation and design considerations for the Mode system and Orders feature.

I described the design of the Mode system as well as the implementation of the commands that allow users to change mode. My write-up for the mode-changing commands is replicated below while my overview of the Mode system can be found here.

Current Implementation

Changing modes in general

The modes of the application are defined using a Mode enum and the current mode of the application is stored as a private attribute mode in LogicManager. Users can switch between modes in ROR using the {XXX}Mode command, such as menuMode and tableMode. When the mode of the application is changed, we need to update the:

  • Logic component so that the mode attribute in LogicManager reflects the new current mode, since this is used to check if a command can be executed,

  • UI component so that the panels display the information that is relevant to the mode.

For all these commands, these updates are done using a new toMode attribute added to the CommandResult object. As an example, the figure below shows the sequence diagram for when a user executes the menuMode command:

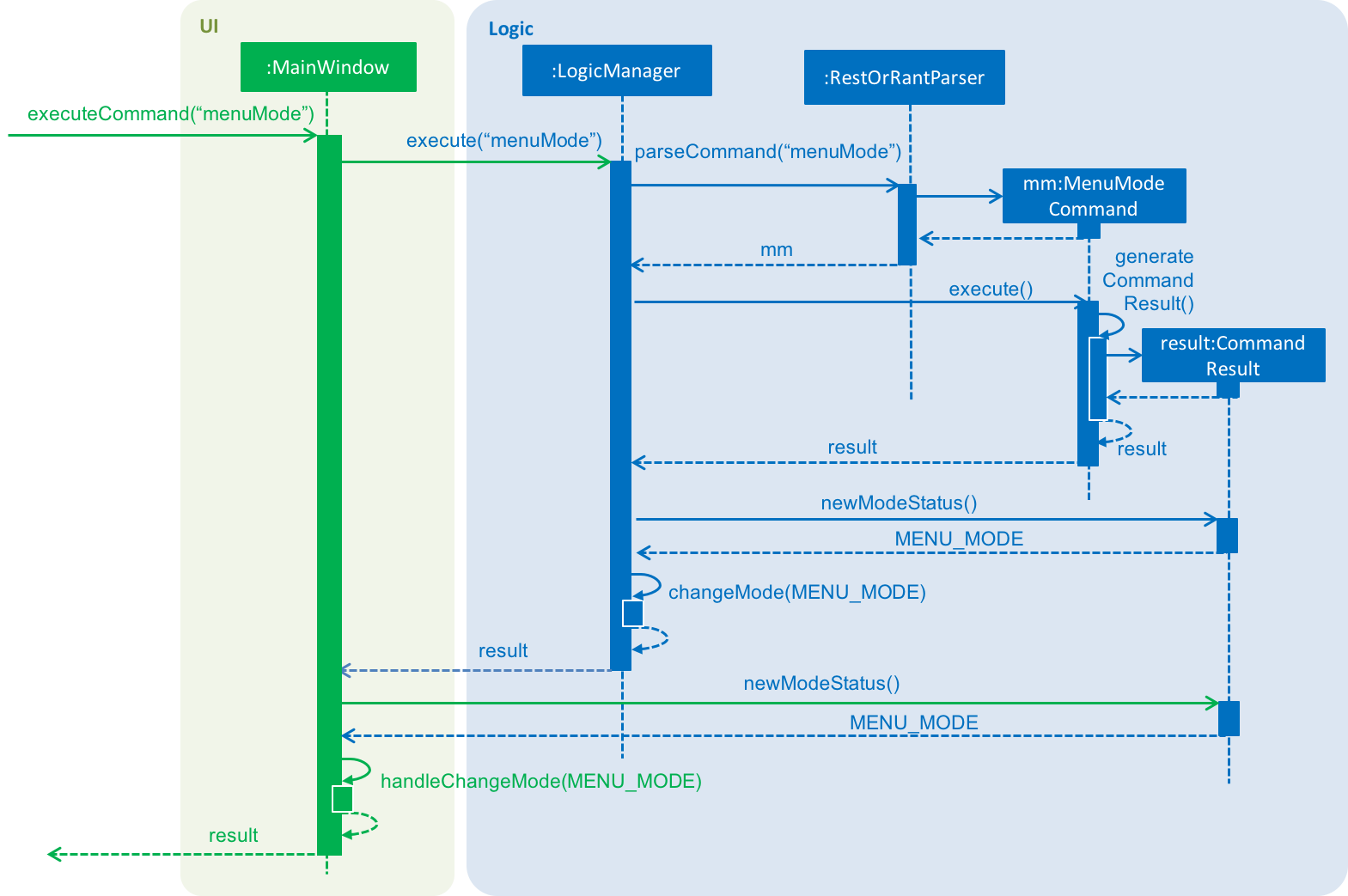

MenuModeSequenceDiagram
Figure 1. Component interactions for menuMode command

Upon execution of the menuMode command, MenuModeCommand#generateCommandResult() will generate a CommandResult whose toMode attribute is set to MENU_MODE and return it to the LogicManager. Now, the updates can be done for the respective components:

  • Logic component: LogicManager calls CommandResult#newModeStatus() to retrieve the mode to be changed to and updates the current mode stored in its mode attribute by calling LogicManager#changeMode(). The CommandResult is passed to MainWindow in UI.

  • UI component: MainWindow calls CommandResult#newModeStatus() to retrieve the mode to be changed to and updates the display panels by calling MainWindow#handleChangeMode().

For commands that do not involve a change in mode, CommandResult#newModeStatus() will return null and no updates to the current mode or display will be done.
Changing to Table Mode for a specific table

All the commands that change modes take no parameters except for Table Mode. When the user wants to perform order-related operations (eg. add an item to the table’s order), the user will first have to switch to Table Mode by typing the tableMode command (or its shortcut TM) followed by the table number of the table that the user wants to perform actions on.

The following sequence diagram shows the relevant parts of what happens when a user executes the tableMode 3 command:

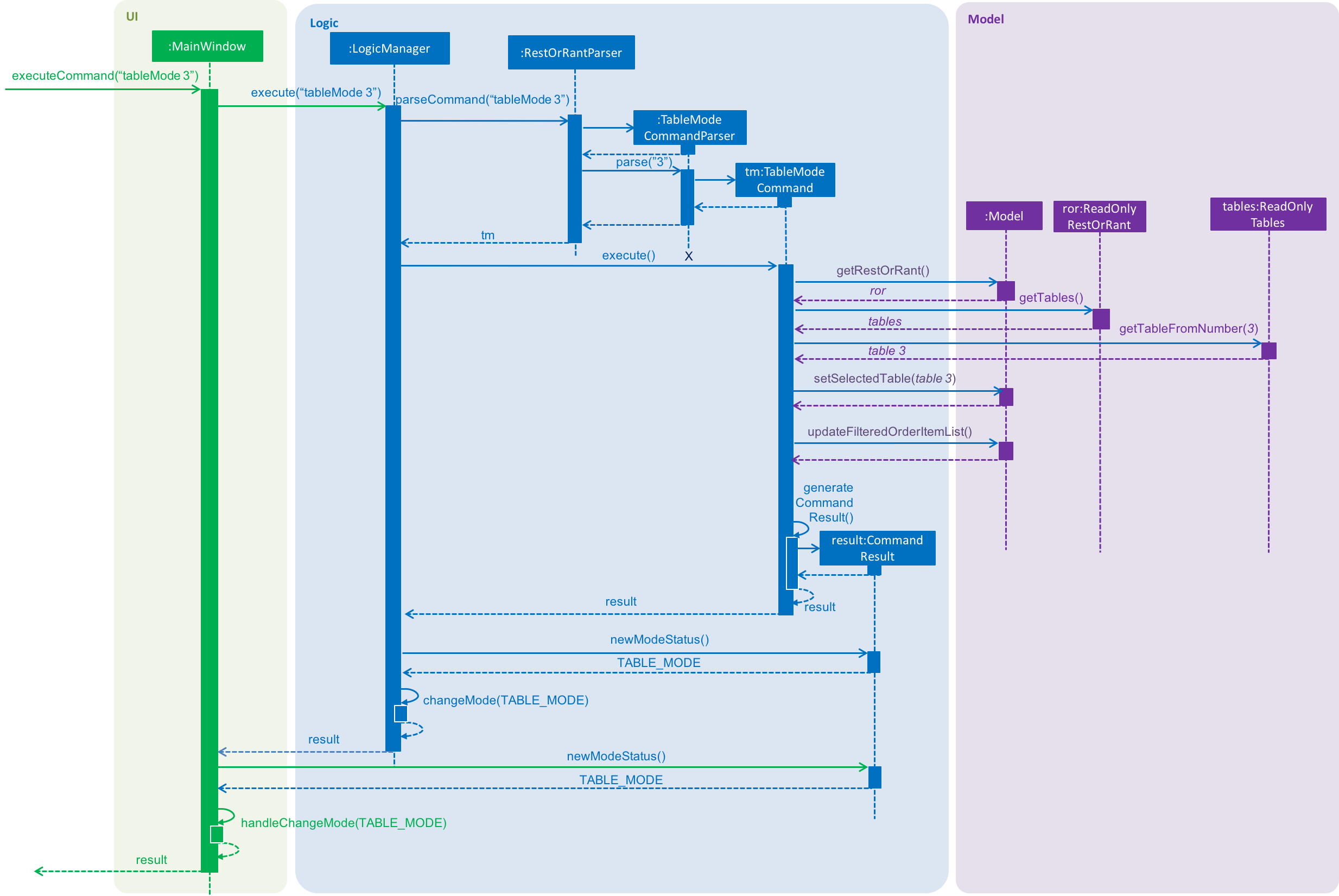

TableModeSequenceDiagram
Figure 2. Component interactions for tableMode 3 command

The Logic and UI component interactions work in a similar way to the other commands that change modes and the implementation is mentioned above. The only difference is the parsing of the argument 3 into a TableNumber object that indicates the table number of the target table to switch to. This TableNumber object is stored as an attribute in TableModeCommand.

Let’s focus on what happens to the Model component when TableModeCommand#execute() is called. The relevant parts of the sequence diagram has been extracted out and shown in the diagram below.

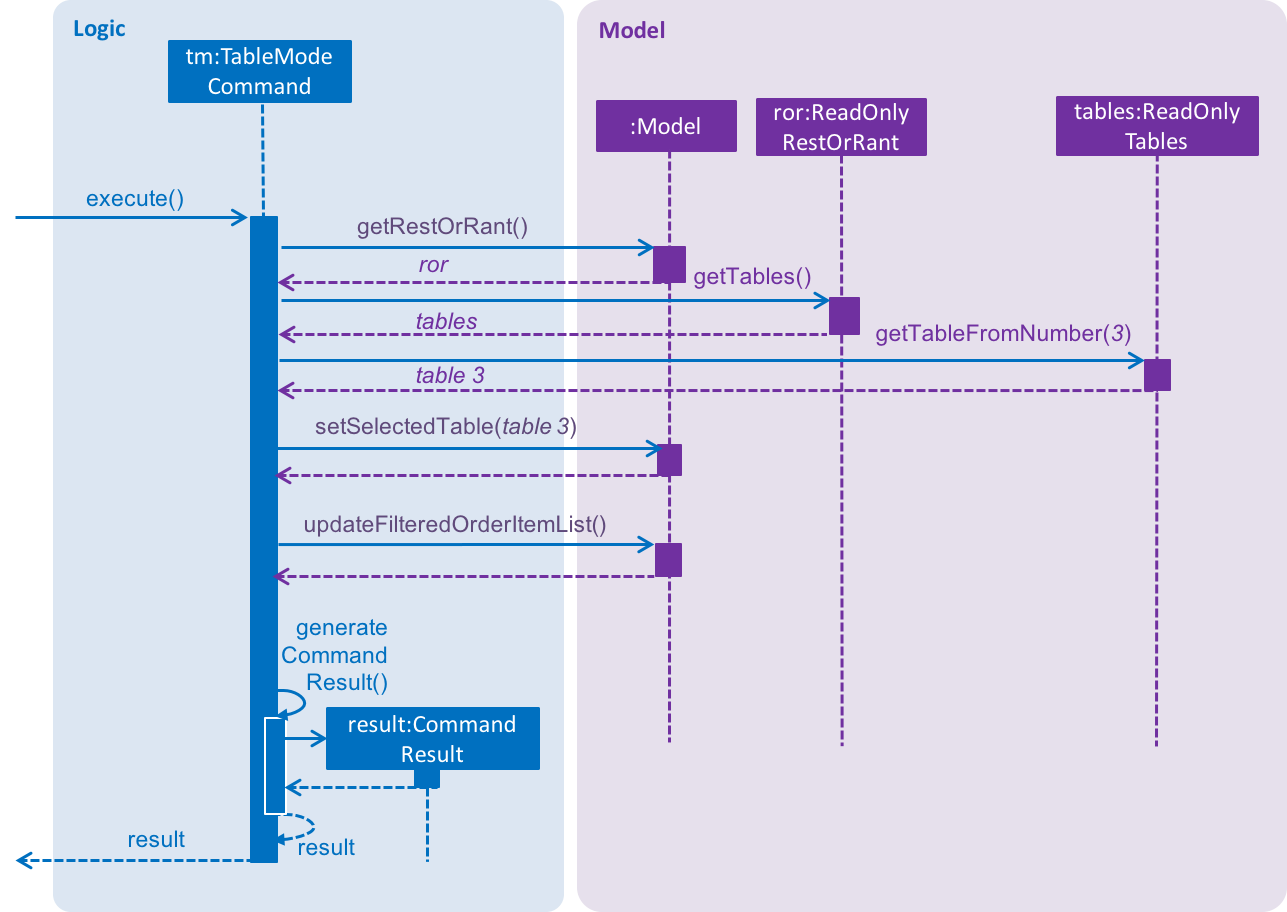

TableModeModelSequenceDiagram
Figure 3. Interaction between Logic and Model components for tableMode 3 command

It first retrieves the Table in RestOrRant that corresponds to its TableNumber attribute. The list of tables are stored within the Tables object in RestOrRant. The read only versions of these objects can be obtained from Model#getRestOrRant() and then ReadOnlyRestOrRant#getTables(). The desired Table object can then be retrieved by passing TableNumber into ReadOnlyTables#getTableFromNumber().

The Table is then set as the selected table in Model using Model#setSelectedTable(). This is to keep track of the current table so that the Table Mode commands like addToOrder and bill can easily perform their operations by getting the table from Model#getSelectedTable().

After which, Model#updateFilteredOrderItemList() is called to update the filtered list such that it only contains order items ordered by the chosen table. This will then update the item list panel in the UI to display only the order items that were ordered by the chosen table.

TableModeCommand#execute() also checks that the application is not already in Table Mode of the same table number, the table number specified is valid, and the desired table is occupied.

Design Considerations

Aspect Alternative 1 Alternative 2

Defining of modes

Modes are defined using a Mode enum.
- Pros: Easily identify incorrect modes since the set of valid modes is restricted to the enum values.
- Cons: Need to create a new class in Logic, which increases coupling between Logic and UI components.

We decided to choose this option as the enum is an abstraction over the possible modes. Apart from being less prone to errors, it also makes the code more readable as the enum values explicitly state the name of the mode (eg. TABLE_MODE, MENU_MODE) and are stored in Mode variables, making it clear that it refers to a mode and not just any string.

Modes can be defined with strings (eg. "TableMode") or integers.
- Pros: Easy to implement.
- Cons: May be prone to errors (eg. mistyping a string) that causes bugs in the code.

Storing of current mode

Mode stored in the Logic component (LogicManager).
- Pros: Easy to access the current mode to check whether a command is valid to execute in a particular mode.
- Cons: Slightly breaks abstraction since mode is not purely related to command execution.

We decided to store the current mode in Logic because we note that most of the work that requires access to the current mode is done here, so providing a quick access will be more efficient. The Model component does not need to know what the current mode is at all, so it would be better to keep the coupling low to facilitate integration.

Mode stored in the Model component (ModelManager).
- Pros: Maintains abstraction as the mode is part of the current state of the application, which is maintained by Model.
- Cons: Increases coupling among the Model, Logic and UI components.

Specifying table number for Table Mode commands

Table number specified only once when switching to Table Mode, then retrieved from Model#getSelectedTable() for future commands.
- Pros: Convenient to retrieve table number without having to explicitly specify it in every command.
- Cons: Commands that change modes are not standardized since the others do not have any parameters.

We decided to go ahead with this implementation as we feel that from a user’s point of view, it would be more convenient to be able to just specify the table number once and then perform a series of operations afterwards. Furthermore, having to parse the table number for every command will also do more work.

Table number specified for every command (eg. addToOrder 3 W09 1 to add 1x W09 to table 3).
- Pros: All commands that change modes are simple and similar.
- Cons: Makes the commands longer to type.

I also described the design of the Orders feature and the implementation of the four commands that it currently supports. My design of the Orders feature and my implementation of the clearOrder command are replicated below while my full write-ups can be found here.

Classes for Orders feature in Model

The Orders feature was implemented with the introduction of a new set of classes to Model. A new Orders class encapsulates all the methods and classes related to this feature. It also contains a listener that is used to update the storage when any modification is made to the orders. The Orders object is stored in RestOrRant and it exposes a read-only interface ReadOnlyOrders to allow the other components to retrieve order-related information while maintaining data integrity.

Orders contains a UniqueOrderItemList, which contains a list of all the items ordered across all the tables in the restaurant, represented by OrderItem objects. Each OrderItem object consists of 4 objects:

  • TableNumber indicates the table number of the table that ordered the item

  • OrderItemStatus tracks the quantity ordered and the quantity that has yet to be served

  • Code indicates the item code and is used to identify the item ordered

  • Name indicates the item name and is used for display in the UI

OrderItem objects are uniquely identified by TableNumber, Code and Name as each table can only have one order entry for each item.

The Orders Class Diagram below shows the relationship between the classes.

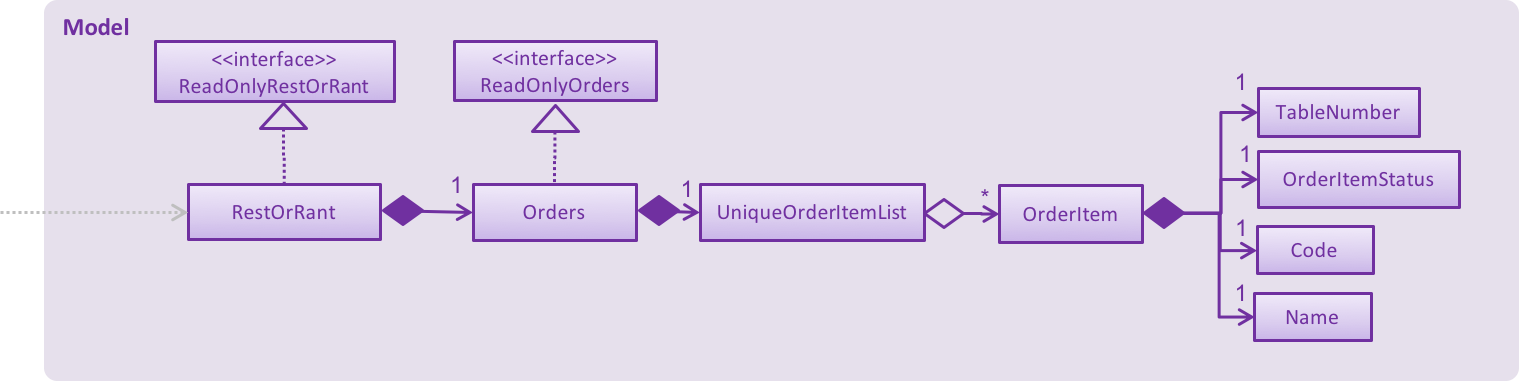

OrdersModelClassDiagram
Figure 4. Orders Class Diagram in the Model component

Getting the table number

The Orders feature allows users to perform order-related operations for a specific table. The table number of that table is specified when switching over to Table Mode.

The table number is stored so that users do not need to keep specifying it when typing the commands.

As a result, all the commands in the Orders feature will have to retrieve the table number from Model first before they can perform their functions. The current table is stored as a Table object in Model, which is retrieved by calling Model#getSelectedTable(). The table number, which is represented by a TableNumber object, can then be retrieved from that Table. The sequence diagram for this operation is shown below.

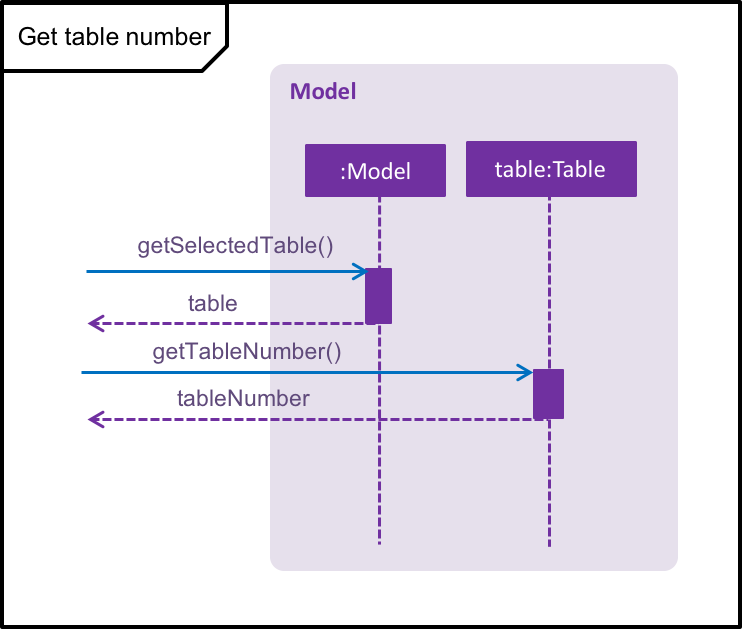

CurrentTableSequenceDiagram
Figure 5. Sequence diagram for retrieving the table number

Clearing an order

The user may want to remove all the order items from a specific table’s order and this can be done with the clearOrder command.

Current Implementation

When the user enters the clearOrder command, the command is parsed and a ClearOrderCommand object is created.

ClearOrderCommand#execute() is then called, which in turn calls Model#clearOrderItemsFrom() with the current TableNumber. Model acts as a facade and forwards the call to Orders#clearOrderItemsFrom(), and that method’s source code is replicated below.

public void clearOrderItemsFrom(TableNumber tableNumber) {
        ArrayList<OrderItem> itemsToDelete = new ArrayList<>();
        for (OrderItem orderItem : orderItems) { (1)
            if (orderItem.getTableNumber().equals(tableNumber)) {
                itemsToDelete.add(orderItem);
            }
        }
        for (OrderItem item : itemsToDelete) { (2)
            orderItems.remove(item);
        }
        indicateModified(); (3)
}

In the method above, orderItems is a UniqueOrderItemList that contains all the order items from all the tables. Let’s walk through this method to see how the main functionality of clearOrder is implemented:

1 It first loops through all the items in the UniqueOrderItemList and stores the OrderItem objects with the current TableNumber into a new list.
2 It then deletes the items in this list from the UniqueOrderItemList.
3 Finally, it triggers the listener in Orders to indicate that the order item list has been modified. This signals to the LogicManager to update the storage data files by calling Storage#saveOrders().

The sequence diagram for when a user executes the clearOrder command is shown below.

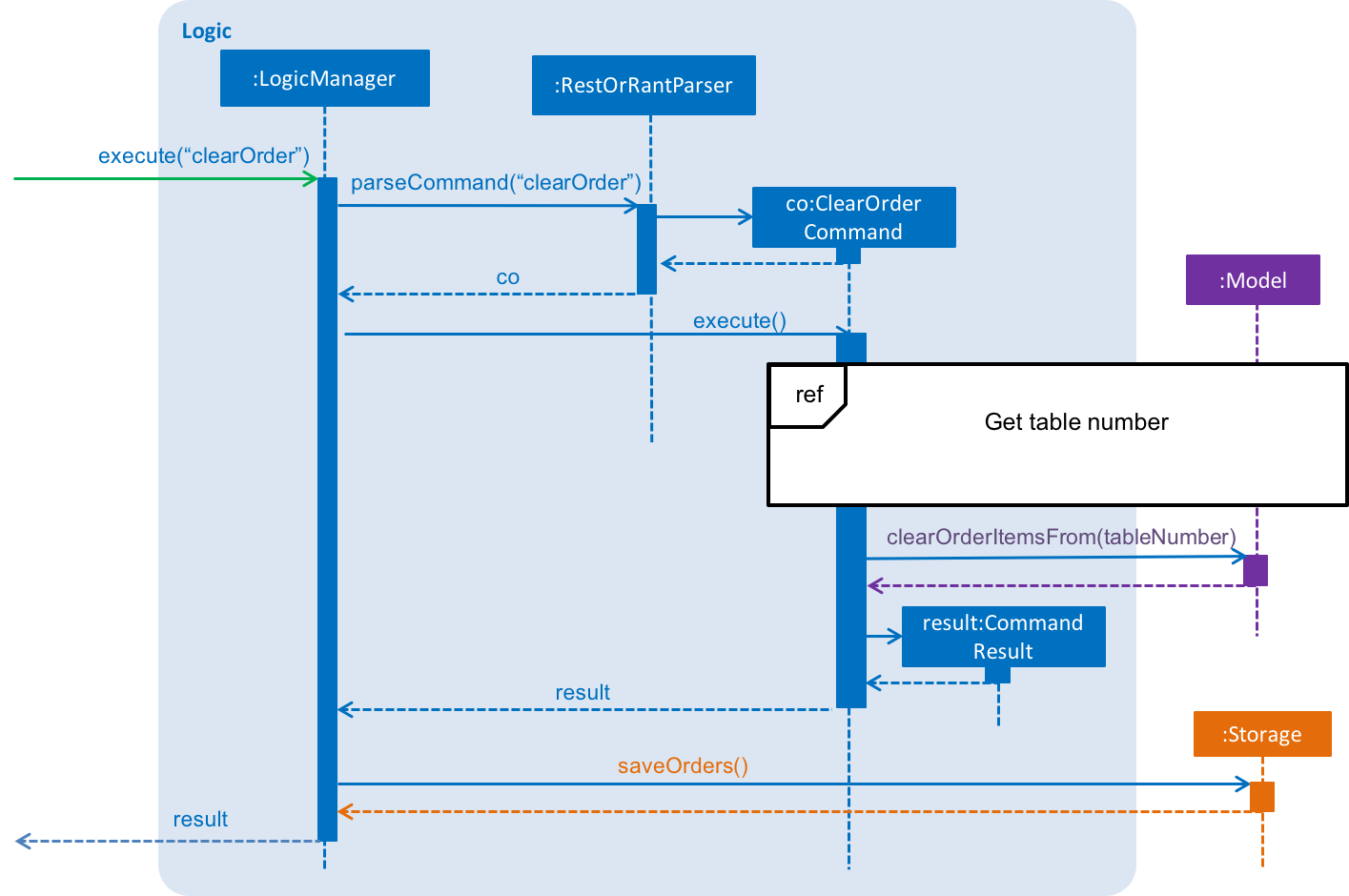

ClearOrderSequenceDiagram
Figure 6. Component interactions for clearOrder command
Design Considerations
Aspect Alternative 1 Alternative 2

Storing of order items

The order items from all the tables in RestOrRant can be stored in a single UniqueOrderItemList.
- Pros: Easier to handle a single list.
- Cons: clearOrder needs to iterate through the entire list to delete the order items from the specific table.

We decided to choose this option because we realise that customers are unlikely to order a large number of items in a single table, so it would not be space efficient to create so many UniqueOrderItemList. Furthermore, it also provides the benefit of arranging the order items across all the tables based on when they were ordered without keeping an extra time attribute. This provides the useful functionality of seeing which orders should be fulfilled first in Restaurant Mode.

Each table has its own UniqueOrderItemList to store the order items for that table.
- Pros: clearOrder will just need to create a new empty UniqueOrderItemList to replace the existing one.
- Cons: Difficult to keep track of so many lists. May be space inefficient to create multiple UniqueOrderItemList if each list only has a few items.
